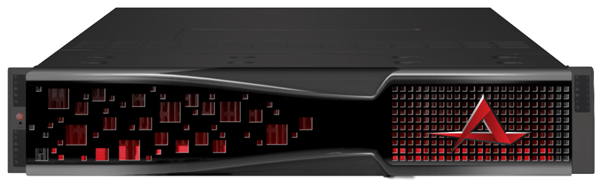

Atlantis Computing offers flexible and powerful software-defined storage platforms and in their plight against traditional data storage have unveiled HyperScale. An all-flash 'turnkey appliance' offering hyper-convergence, HyperScale is an appliance that not only provides you the necessary hardware to host 600 persistent desktops per appliance but also equips you with enough all-flash storage to make your desktops perform better than PCs with SSDs.
Atlantis HyperScale all-flash hyper-converged appliances provide an ideal infrastructure platform for server virtualisation that provides servers, storage, networking and virtualisation in a single appliance at a cost that is 50-90% lower than traditional data centres. Instead of integrating costly and complex SAN, NAS or all-flash array storage with servers, Atlantis HyperScale delivers an all-flash hyper-converged solution that is pre-integrated with compute, enterprise-class all-flash storage and virtualisation. Within 60 minutes, organizations can deploy turnkey appliances that provide up to 96 CPU cores, 2TB of RAM and 24TB of all-flash storage that can support hundreds of server VMs.
The Supermicro and Atlantis hardware collaboration consists of the following features:
- 2U 4-node Supermicro TwinPro System
- 96 cores (Intel Xeon E5-2680 v3)
- Up to 2TB of RAM
- 10GbE network cards
- 12 or 24TB of all-flash effective storage capacity
- 3 years warranty
| SERVER SPECIFICATIONS | CX-12 | CX-24 | |
| Server Compute | Supermicro SuperServer 2028 TP-HC1R with Dual Intel E5-2680 v3 (12 Core) | ||
| Hypervisor | VMware vSphere 5.5 or Citrix XenServer 6.5 | ||
| Memory | 256GB-384GB | 384GB-512GB | |
| Networking | 2x 10GbE & 2 x 1GbE | ||
| Storage | |||
| All-Flash Effective Capacity (TB) (Per 4-Node Appliance) | 12 TB | 24 TB | |
| Local Flash Storage (per node) | 3x 400GB SSD, 32GB USB Media | 3x 800GB SSD, 32GB USB Media |
|
| Storage Resiliency Policy | HA Enabled with Single Host Failure Protection | ||
| GENERAL PURPOSE SERVER VIRTUAL MACHINE DENSITY | |||
| Server VMs (Per 4-Node Appliance) | 170 | 365 | |
| VIRTUAL DESKTOP DENSITY (CX-12/CX-24) | |||
| Maximum Number of Virtual Desktops Per 4 Node Server Configuration |
Task Worker (20GB, 1vCPU, 1.5GB RAM LoginVSI Task Worker) |
Knowledge Worker (50GB, 2vCPU, 2GB RAM LoginVSI Knowledge Worker) |
Power User (100GB, 2vCPU, 4GB RAM LoginVSI Storage Workload) |
| Stateless VDI | 450 / 650 | 325 / 500 | 150 / 250 |
| Persistent VDI | 450 / 650 | 325 / 500 | 150 / 250 |
With hyper-converged appliances, local storage, servers and virtualisation are integrated into a single system, simplifying deployment and management. Atlantis HyperScale is the first economically viable all-flash hyper-converged system that integrates servers, storage and virtualisation into a single appliance.
Get in touch with our technically trained representatives to discuss your server, storage and networking needs and how HyperScale could help you and your business!
